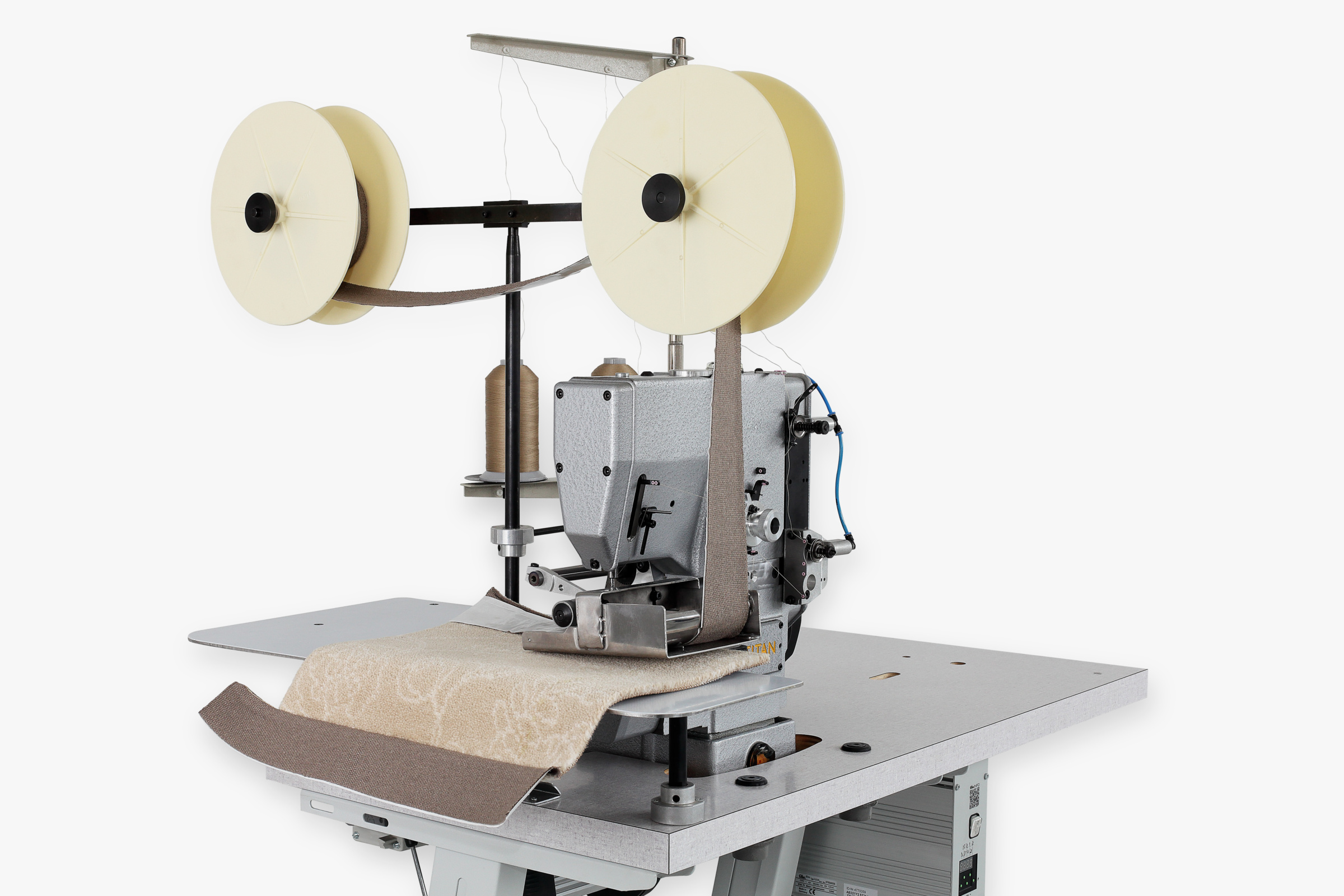

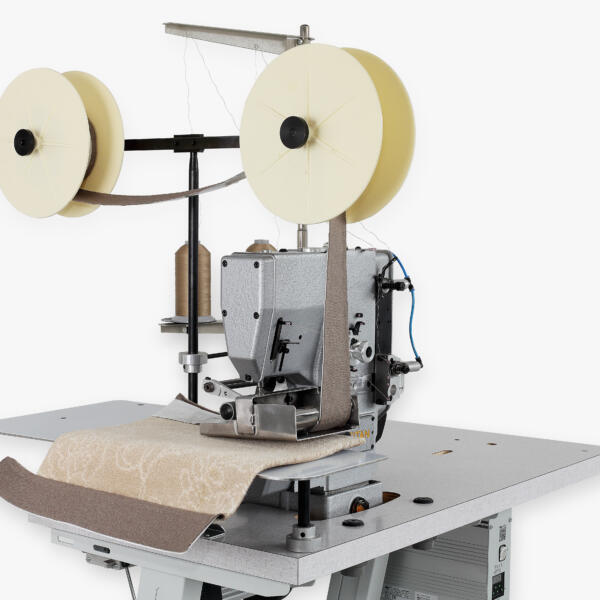

TITAN 3700C

Carpet tape binder. Heavy duty double chainstitch machine.

  • Sews tape on all types of carpets.
  • Machine especially designed for Sisal, Cocos and Seagrass carpets. Synchronised upper and lower transport with walking needle mechanism.
  • Allows easy w without slipping or failed stitches.
  • Low maintenance due to automatic lubrication.

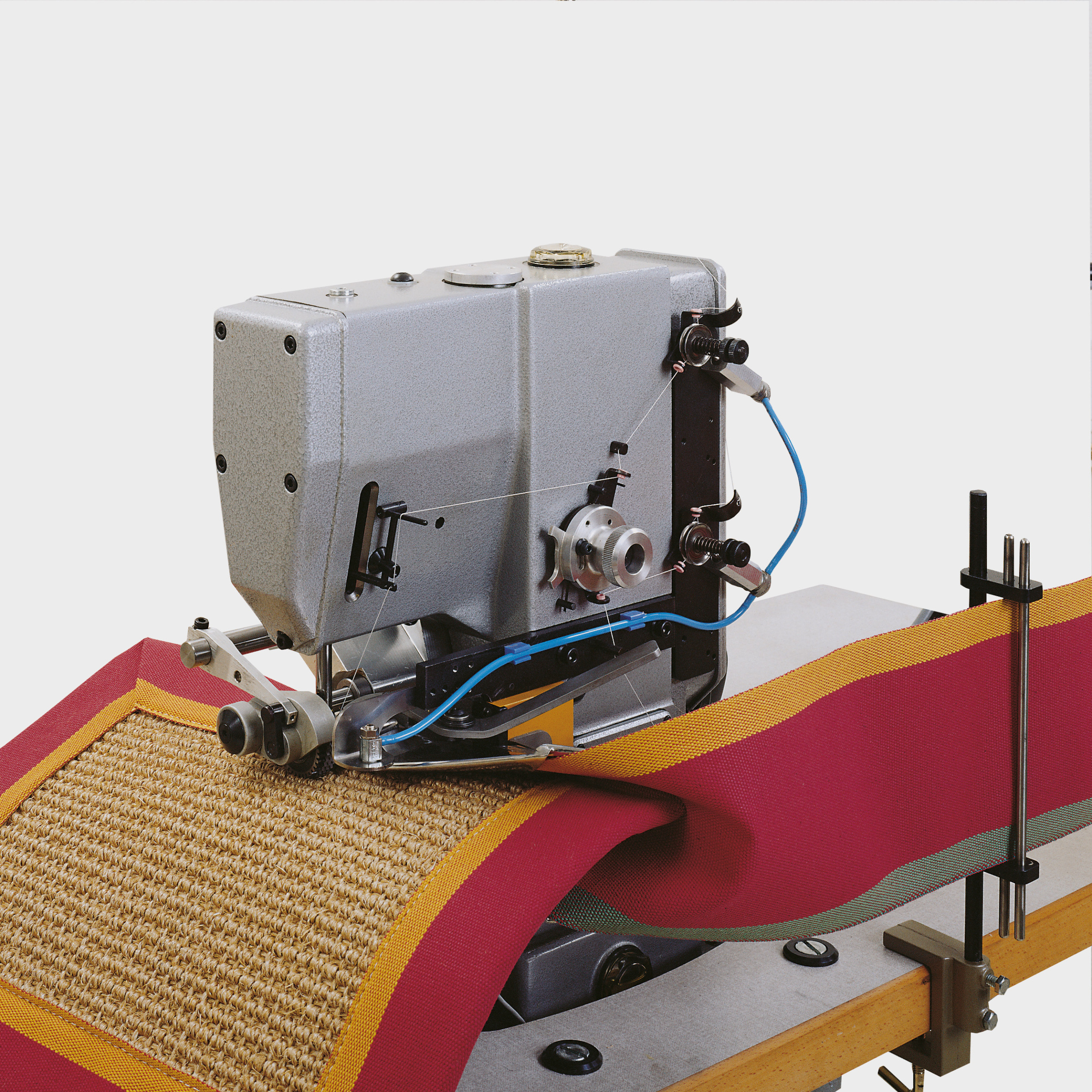

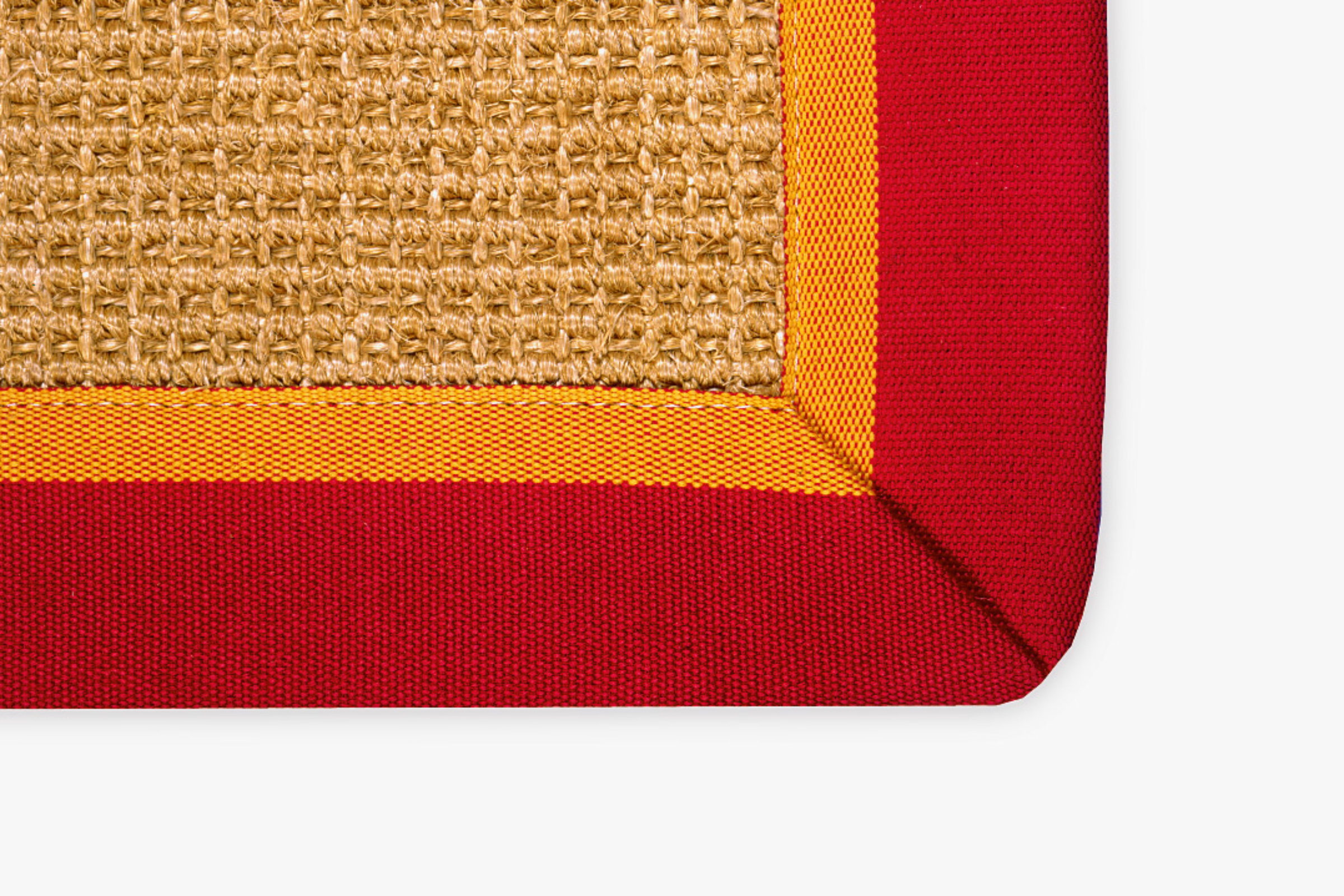

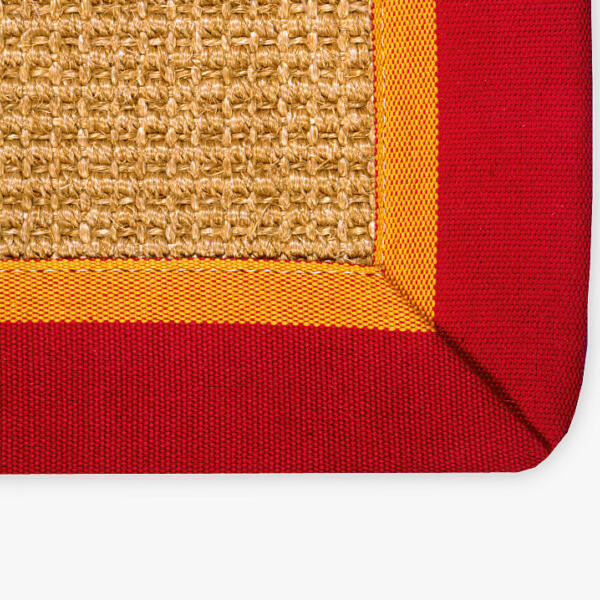

Sample TITAN DK 3700 C 3
  • Speed

    2800 rpm

  • Thickness

    10 mm

  • Fabric Feed

    Puller

  • Needles

    1

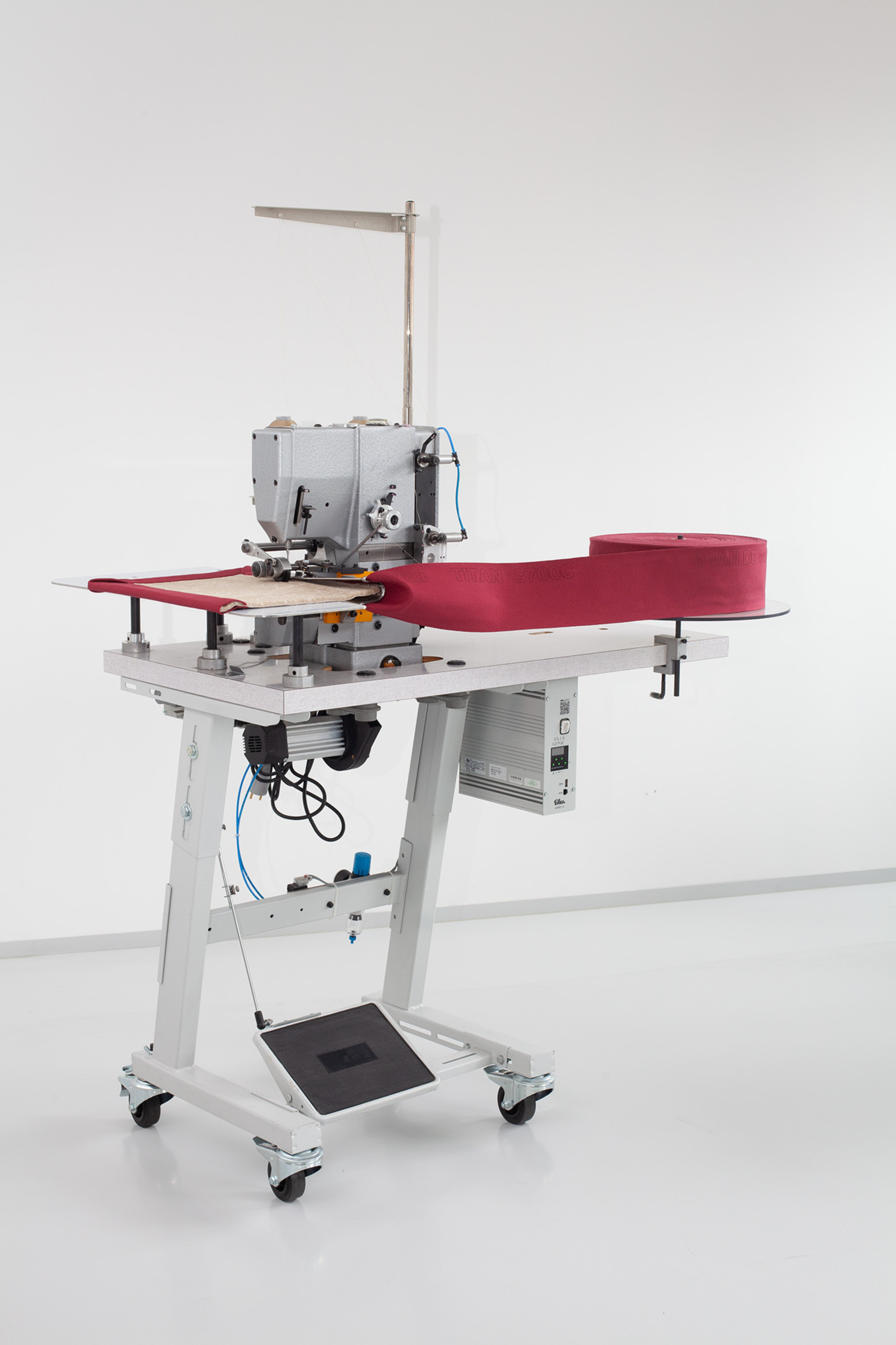

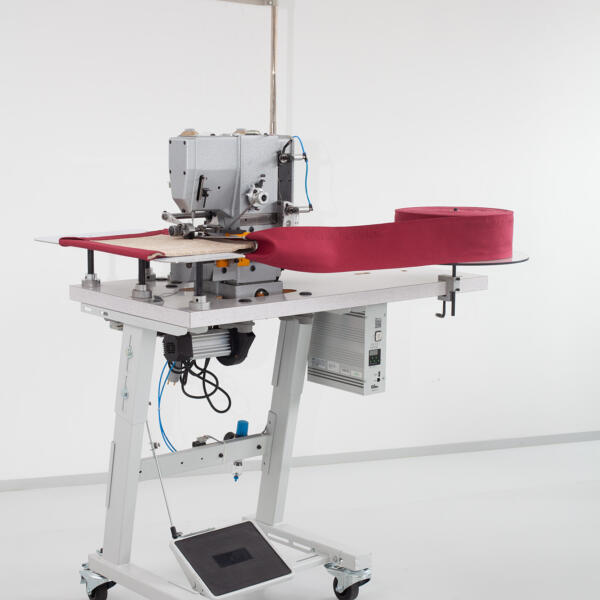

IMG 0007

Always included

  • Pneumatic footlift & tension opener

Options

  • P/ 3700 : puller system at the back, to pull finished carpet through the machine. Safes an extra person at the machine, for handling large carpets
  • P2/3700 : long puller for extra heavy carpets
  • NCV/ 3700C : needle cooler. Continuous airflow to cool the needle for carpets with latex
  • MEM/3700 : electronic motor & sensor. The sewing machine automatically stops at the edge of the carpet with the needle & the pressure foot up, ready to make a corner
  • Tape folders : for all types of ribbons on all types of carpets, custom made
  • CIS folder : invisible stitch finishing
  • TA/DK 3700 : upper table

Remarks

  • 4700C : high speed version for thicker carpets available
  • Can also be used for technical textiles applications
