TITAN 4510CHE

HEAVY DUTY BUTTSEAMER

Stitch width: 30-35 mm
depending on thicknessof material
material thickness: 20 mm
two layers of material
Speed: 1500 rpm
depending on material

TITAN 4510CHE

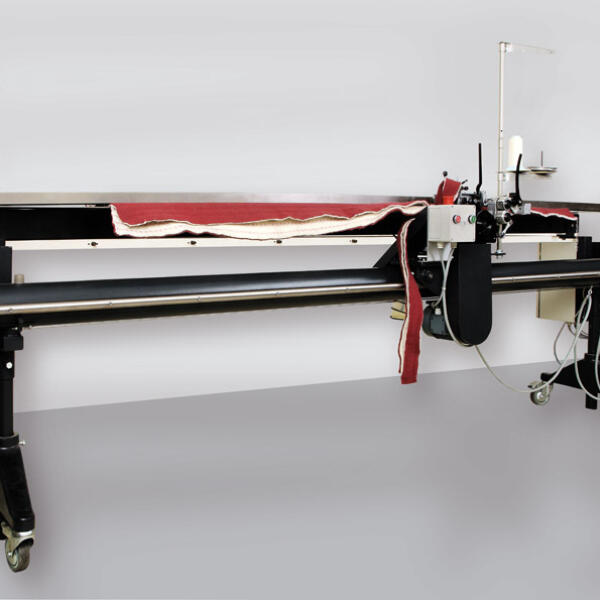

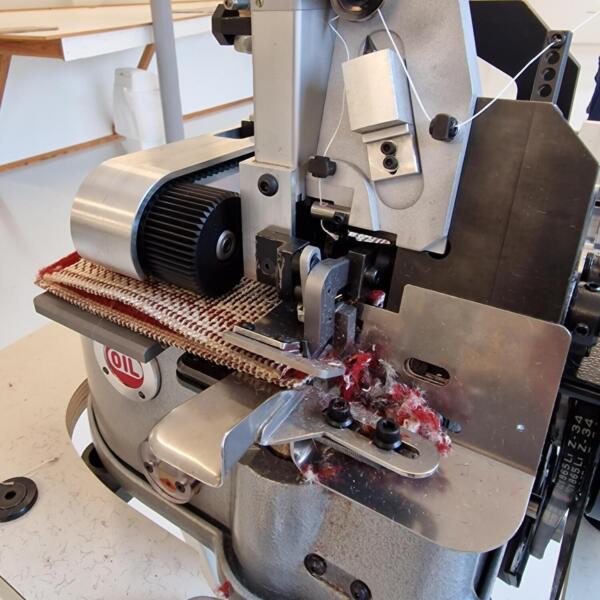

This compact and heavy duty buttseamer sewing machine has been developped to work on all types of materials which are up to 20 mm in double layer. The very heavy cutting knifes (UKM/2) are working like scissors , and can take away excess material , and make a clean cut. This machine can also be build in a large rail . With the help of a long belt puller the machine can run on its own from one side to the other. See the pictures below for the layout of this rails. These are made to order in sizes : 2, 3, 4 or 5 meter.
